Thickness Gauge

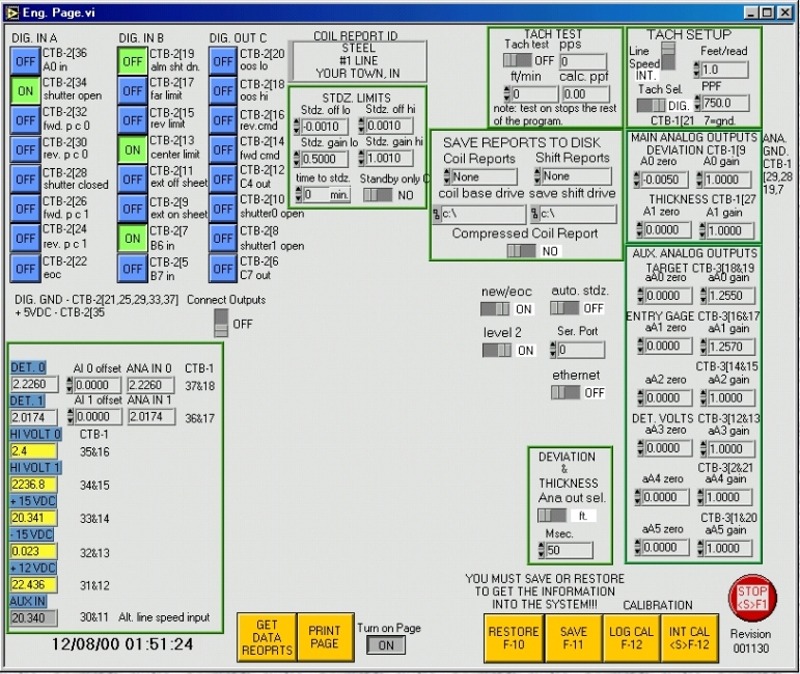

Engineering Set-up Page
ESC Resources Coating Weight Gauge CWG-8001 System Display

  1. Test all inputs and outputs. I/O termination's on the page eliminate the need for prints to troubleshoot.

  2. Page can be printed and faxed to ESC for assistance.

  3. This page is used to customize the system.

    1. Reports to be printed.

    2. Reports to save to disk.

    3. Ethernet operation.

  4. Changes can be made while the main program is running.
